The second half of the D-level work platforms for NASA’s Space Launch System (SLS), D North, arrived at the agency’s Kennedy Space Center on June 27. The D work platforms are the seventh set of new platforms to arrive at Kennedy. A total of 10 levels of work platforms will surround the SLS rocket and Orion spacecraft in the Vehicle Assembly Building (VAB) and provide access for processing.
The platform was transported from Sauer Corp. in Orlando, Florida, by Tillett Heavy Haul of Titusville, Florida. Sauer is a subcontractor to VAB general contractor Hensel Phelps. Tillett Heavy Haul is a subcontractor to Sauer. The platform was placed on a stand in a staging area near the VAB, where some final assembly will be performed before it is transferred into the building.
The Ground Systems Development and Operations Program is overseeing upgrades and modifications to the VAB, including installation of the new platforms, to prepare for Exploration Mission 1, deep-space missions and the journey to Mars.

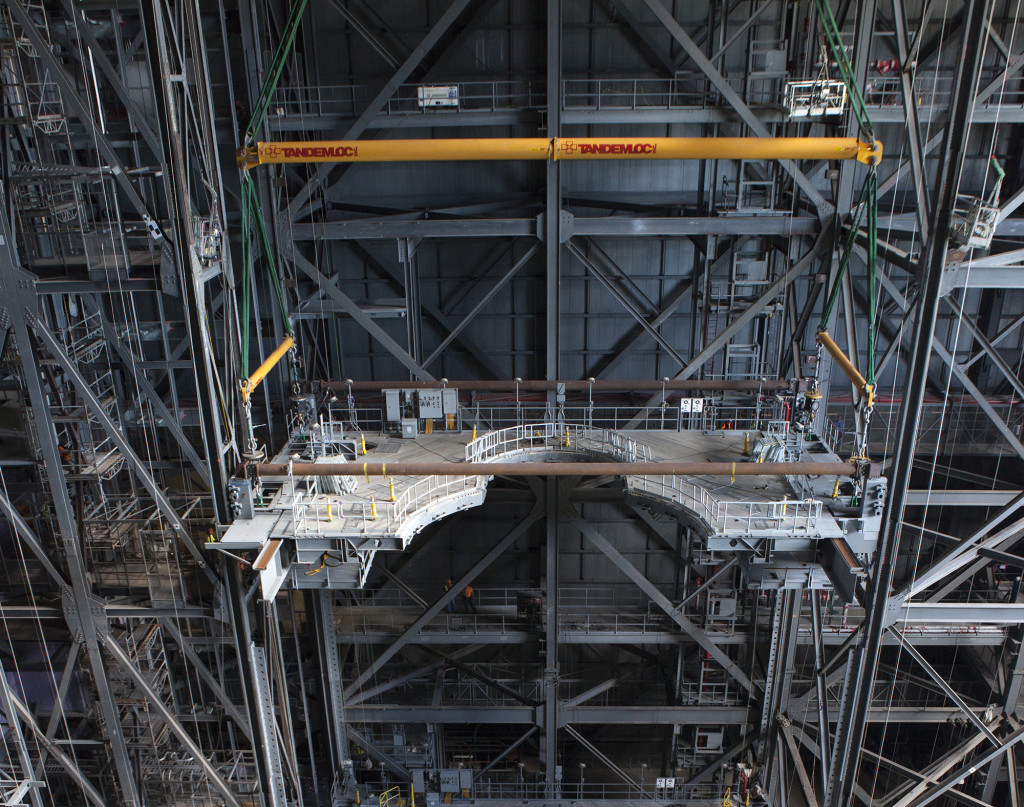

The G-level work platforms for NASA’s Space Launch System (SLS) rocket, were installed this week in High Bay 3 of the Vehicle Assembly Building (VAB) at NASA’s Kennedy Space Center. A heavy-lift crane was used to raise G south and G north platforms up from the transfer aisle, then over and down to about the 14th floor level for installation.
The G-level work platforms are the fourth of 10 levels of work platforms that will surround and provide access to the SLS rocket and Orion spacecraft for Exploration Mission 1. The Ground Systems Development and Operations Program is overseeing upgrades and modifications to VAB High Bay 3, including installation of the new work platforms, to prepare for deep space missions, including NASA’s journey to Mars.
A crane lowers a segment of one of the Tail Service Mast Umbilicals to its other segment at Precision Fabrication Cleaning in Cocoa, Florida. Photo credit: NASA/Bill White
Several connections, called launch umbilicals, will connect from the mobile launcher tower and provide power, communications, coolant and fuel to NASA’s Space Launch System (SLS) rocket and Orion spacecraft for their first integrated mission. Among them are two umbilicals, called tail service mast umbilicals (TSMUs). They are being cleaned and assembled at Precision Fabrication Cleaning in Cocoa, Florida, before they are transported to the agency’s Kennedy Space Center in Florida for testing.
Technicians are cleaning the two segments of each umbilical to remove any dirt or debris that may hinder their functionality, checking them for any defects, and then assembling the parts to form two complete umbilicals. They will be transported to Kennedy’s Launch Equipment Test Facility where they will undergo testing to ensure their readiness to support prelaunch operations leading up to launch.
The umbilicals will connect from the zero-level deck on the base of the mobile launcher to the SLS rocket core stage aft section. The 33-foot-tall structures will provide liquid oxygen and liquid hydrogen fluid lines and electrical cable connections to the SLS core stage engine section to support propellant handling during prelaunch operations.
At the LETF, engineers and technicians will use liquid nitrogen to simulate the liquid oxygen for the TSMU that will provide liquid oxygen. They will test the umbilical’s arm performance across the full range of SLS core stage motions and simulate a vehicle launch using the Vehicle Motion Simulator test fixture. The same series of tests will be performed with the second TSMU that will provide liquid hydrogen, using the actual liquid hydrogen commodity.
Before launch, both TSMUs will tilt back to ensure a safe and reliable disconnect and retract of all umbilical hardware away from the rocket during liftoff.
Kennedy’s Engineering Directorate, along with the Ground Systems Development and Operations Program, are supporting processing activities of the umbilicals for missions to deep space including NASA’s journey to Mars.
A heavy load transport truck from Tillett Heavy Hauling in Titusville, Florida, arrives at the north entrance gate at NASA’s Kennedy Space Center in Florida, carrying the first half of the D-level work platforms, D south, for the agency’s Space Launch System (SLS) rocket. The platform will be delivered to the Vehicle Assembly Building (VAB) staging area in the west parking lot. The Ground Systems Development and Operations Program is overseeing upgrades and modifications to VAB High Bay 3 to support processing of the SLS and Orion spacecraft. A total of 10 levels of new platforms, 20 platform halves altogether, will surround the SLS rocket and Orion spacecraft and provide access for testing and processing to prepare for Exploration Mission 1.
The second half of the D-level work platforms for NASA’s Space Launch System (SLS), D North, arrived at the agency’s Kennedy Space Center on June 27. The D work platforms are the seventh set of new platforms to arrive at Kennedy. A total of 10 levels of work platforms will surround the SLS rocket and Orion spacecraft in the Vehicle Assembly Building (VAB) and provide access for processing.
